Technical

Every Quick Built home is built from Structural Insulated Panel Systems — Panelspan® walls and Insulspan® roofing. Here's how the panels are made, and where to find the full engineering specifications.

Download specs
What is SIPS?

A sheet of fibre cement either side of an insulated core.

Structural Insulated Panel Systems (SIPS) are widely used throughout Europe and the US, and are now available in Australia thanks to ever-increasing building energy-efficiency requirements.

Each panel is a sheet of fibre cement laminated to both sides of an insulation core. Our core is EPS-FR — polystyrene with a fire-retardant additive — giving the panel both its structure and its excellent insulation in one component.

Because the panel is structural and pre-finished, it replaces the frame, insulation and cladding of a traditional wall in a single step — which is why a Quick Built home goes up so fast.

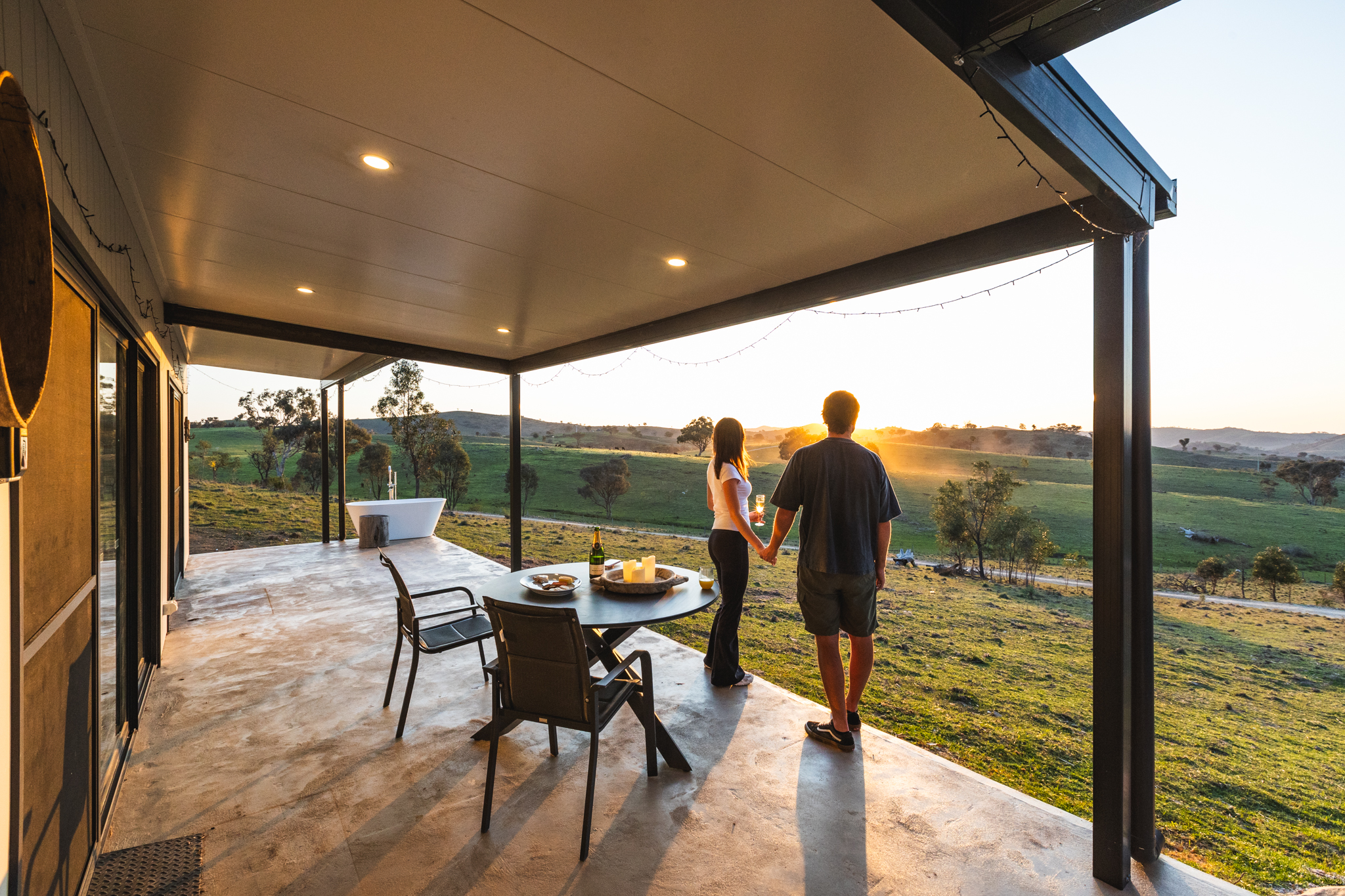

SIPS panel detailFibre cement · EPS-FR core
The panels

Two panels, one envelope.

Panelspan® walls and Insulspan® roofing work together as a complete, fully insulated structural shell.

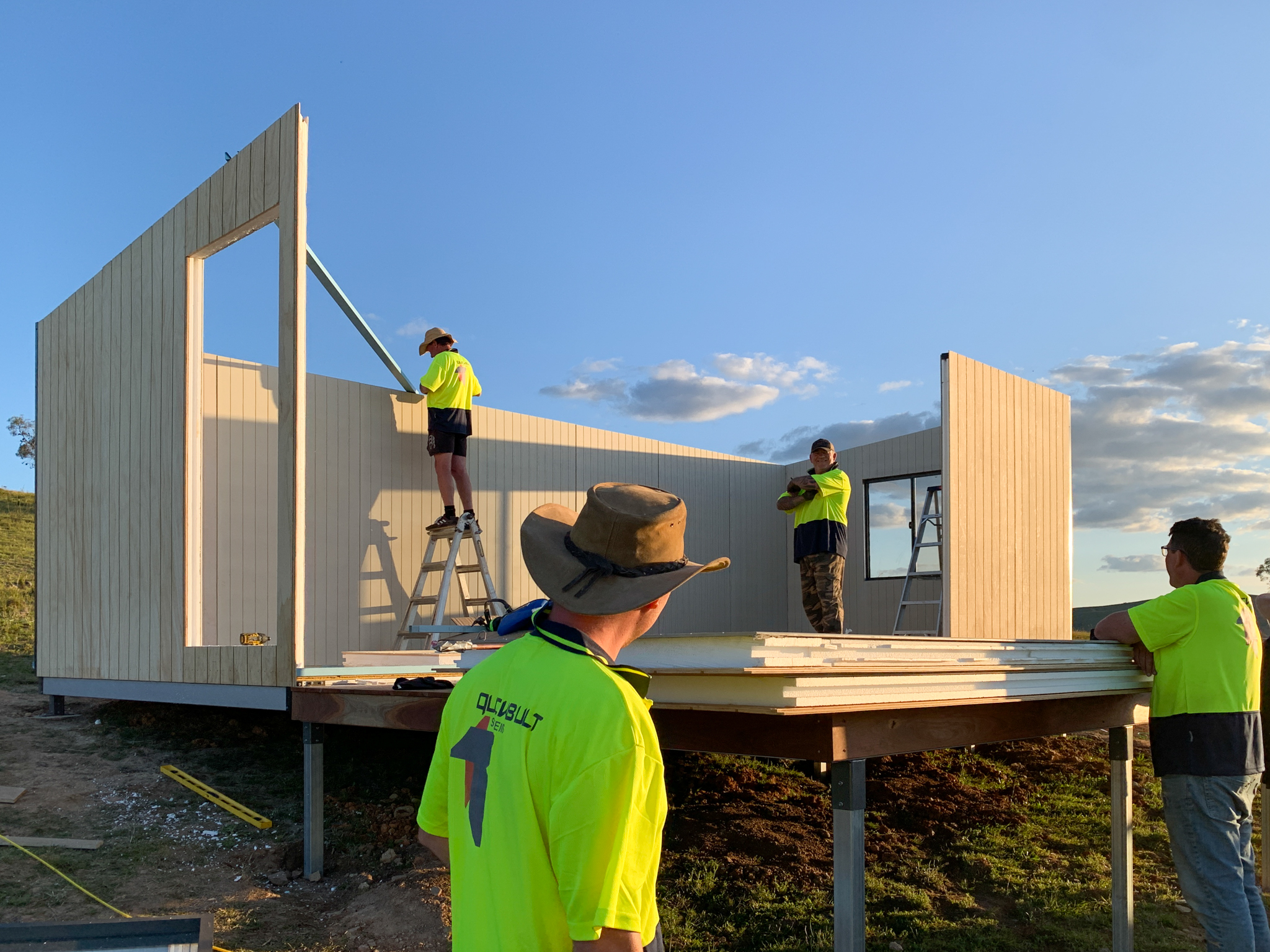

Panelspan®
Wall panels

Panelspan®

Structural insulated wall panels with pre-finished fibre-cement faces over an EPS-FR core. No separate frame or cladding required.

Insulspan®
Roof panels

Insulspan®

Long-span insulated roof panels that carry the load and insulate in one — eliminating purlins, sarking and bulk insulation.

Materials

What the panels are made of.

The standard material make-up of every Quick Built panel kit. Full engineering figures are in the downloads below.

External wall cladding
9mm DuraGroove fibre cement
Internal liner
6mm Duraliner fibre cement
Ceiling cladding
4.5mm DuraSheet
Roof sheeting
0.42 Colorbond® corrugated
Insulated core
'SL' grade EPS-FR (flame-retardant)
Framing
TrueCore® Blue steel — termite resistant
Windows & doors
Aluminium sliding
Patio structure
Alyspan® aluminium beams & posts
Engineering documents

Download the full technical specifications.

Detailed span tables, construction procedures and panel data live in our downloadable documents below.

04Documents available · PDF
QBS Modular Homes & Cabins Brochure
Download
Brochure

QBS Modular Homes & Cabins Brochure

Overview of QuickBuilt Systems modular home and cabin packages — designs, specifications and inclusions.

PDF1.8 MB
QBS Home Construction Procedure Manual
Download
Technical guide

QBS Home Construction Procedure Manual

Detailed construction procedure manual for QuickBuilt Systems homes — site preparation, panel installation and lock-up sequence.

PDF6.3 MB
Quick Built Sub Floor Installation Guide
Download
Install guide

Quick Built Sub Floor Installation Guide

Step-by-step subfloor installation guide for QuickBuilt Systems — bearer and joist layout, fixing details and tolerances.

PDF644 KB
Panelspan® Wall Panel
Download
Brochure

Panelspan® Wall Panel

Product brochure for the Panelspan® structural wall panel system — FC and MgO finishes, thicknesses and structural data.

PDF560 KB

Need engineering for your site?

Our team can provide span tables, certification and council documentation for your specific build.

Speak to our team1300 132 787

Mon–Fri · 7:30am – 4:30pm AEST

Enquire now

What our customers say

Quick Built Systems did an amazing job building my patio! Their team was professional, efficient, and delivered exceptional quality. The design and construction exceeded my expectations, and the attention to detail was impressive. The patio has transformed my outdoor space into a beautiful relaxation area. I've received countless compliments from friends and family.

Kristen Gavanas
Google review
Take your next step

Ready when you are.

For more information on our designs, inclusions, options and prices, download our Design Price Guide.

Or get in touch — we can help answer your questions.

Design Price GuideGet in touch
Quick Built Designs & Price Guide

Frequently asked questions.

Because we use Structural Insulated Panel Systems (SIPS) sandwich-panel technology, there's no need to build a timber or steel frame and then clad it inside and out. The panels arrive pre-finished, so the system reaches lock-up stage in days. Any competent handyman can install a Quick Built home, as it comes as a complete flat-pack kit.

Structural Insulated Panel Systems (SIPS) are widely used throughout Europe and the US and are now available in Australia thanks to ever-increasing energy-efficiency requirements. Each panel is a sheet of fibre cement laminated to both sides of an insulation core. Our core is EPS-FR — polystyrene with a fire-retardant additive — which provides excellent insulation.

Yes. Because we use the pre-finished SIPS panel system, the modules are quick and easy to install. Any keen handyman or owner-builder can build a Quick Built home, as all required parts and instructions are supplied.

All of the panels come pre-cut and labelled, so there's no need for cutting equipment on site. You'll need a drill, screwdrivers, a rivet gun, a silicone applicator, and all necessary safety clothing and eyewear.

Permits may be required depending on the size of your home — you'll need to check requirements with your local council. Our homes are architecturally designed and engineered, so all engineering drawings are supplied with your kit. Under the NSW Complying Development regulations for granny flats, approval can be obtained in as little as ten (10) days where minimum conditions are met. Many backyard cabins under 20m² often need no approval at all.

Our Quick Built kits are engineered for any floor — whether timber, steel frame or a concrete slab. We also offer an optional pre-cut steel flooring system with piers.

You'll need to engage a fully licensed plumber and electrician to complete these works when installing your kit. Plumbing and electrical wiring, fittings and installation are not included in the kit.

Because there's no frame to build and no external cladding to add, the structural shell goes up fast. Most designs reach lock-up stage in a matter of days with a small team — far quicker than traditional construction.
